Go noGo gauges

We supply Go noGo gauges and holding fixtures.

Go noGo gauges are in most cases used for the inspection of the sheet-metal and plastic parts. Parts are fixed at the reference points to gauges by simple movements. Thanks to the firm clamping it is possible to check the length dimensions, position of elements and shape.

Holding fixtures are primarily aimed for fixing the part and then measuring in the 3D coordinate measuring device. The holding fixtures can be also used in other applications. The pieces are clamped in the fixture at the reference points according to the customer's specification.

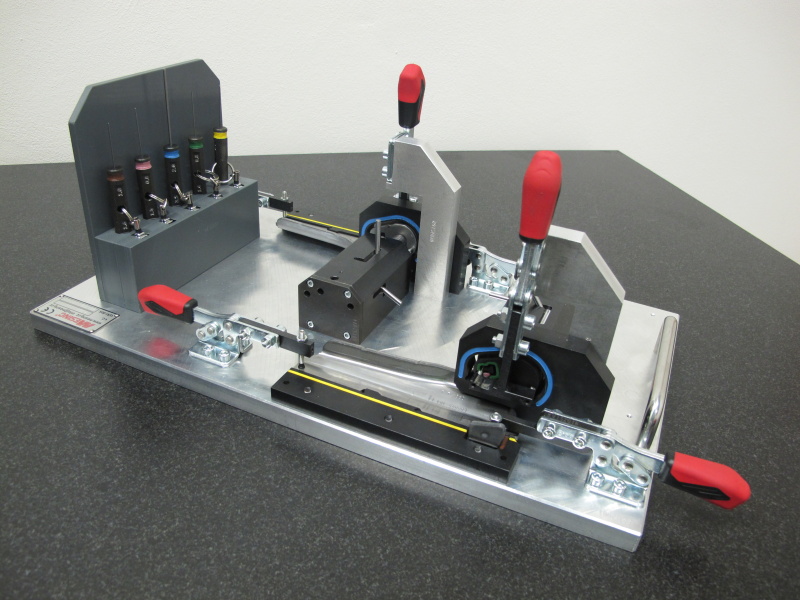

Go noGo gauge

A set of Go noGo gauges used for the inspection of geometric, shape and area tolerances including the fixture for the inspection of parts in the 3D measuring device.

Go noGo gauge

Go noGo gauge used for the inspection of geometric tolerances and shape and area tolerances

Go noGo gauge

Custom-made Go noGo gauge used for the inspection of geometric, shape and area tolerances.

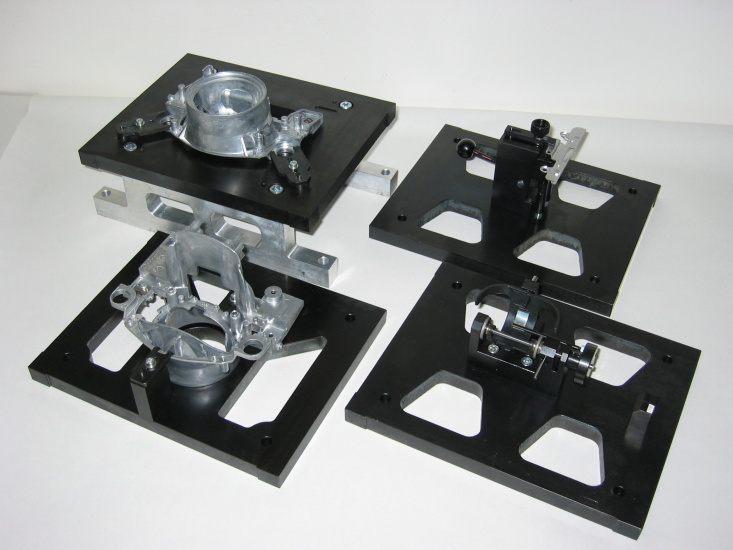

Go noGo gauges

A set of Go noGo gauges used for the inspection of the parts in the 3Dcoordinate machine.

Go noGo gauge

Go noGo gauge used for the inspection of geometric, shape and area tolerances.

Go noGo gauge

Go noGo gauge used for the position inspection of the holes.
